Private Nuget Servers – VS Team Services Package Management

A while back i setup a Klondike server for hosting our internal nuget packages. We use it for both internal libraries and octopus.

Microsoft recently released the Package Management feature for VSTS (Formerly know as VSO), the exciting thing about Package Management is that they have hinted they will include support for npm and bower in future, so you will have a single source for all your package management.

VisualStudioMarketPlacePackageManagement

After Installing in VSTS you will get a new “Package” option in the top bar.

PrivateNugetServerOackageManagerVSTS

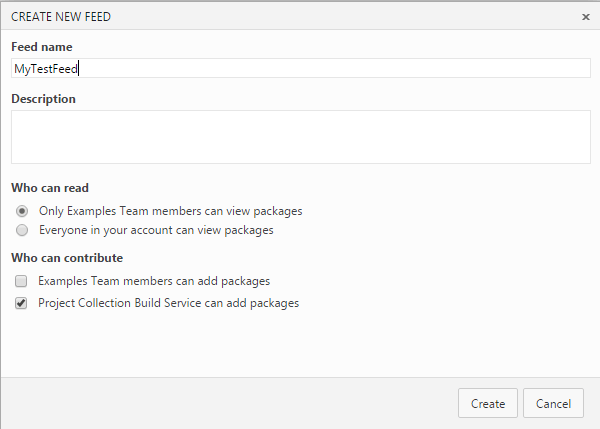

From here you can create new feeds. In my case I’ve decide to break up my feeds to one per project, but you could easily create more per project if you had for example separate responsibilities where you wanted to have more granular permissions. You can restrict the Publish and Read rights to the feeds to users OR groups within VSTS so its very easy to manage, unlike my hack around for permissions in my previous post about Klondike.

CreateNewNugetFeed

Now because we use TeamCity I have considered creating the build service their own Account in VSTS as they need credentials, but in this example I’m just using my own account.

You will need to change the “pick your tool” option to nuget 2.x to get your credentials to use in the TeamCity Steps.

OldVersionOfNugetFeed

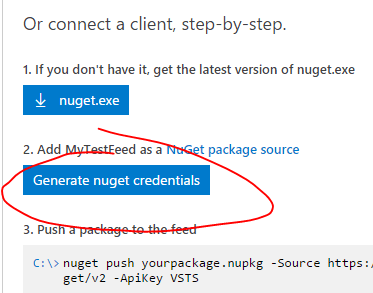

Then click “Generate nuget Credentials” and grab the username and password out.

GetNugetCredentials

NugetFeedCredentials

Next hop over to your TeamCity Server, and edit/add your build configuration.

It’s important to note that you will require at least TeamCity version 9.1.6 to do this, as there is a fix in here for nuget credentials.

First jump into “Build Features”, and add a set of nuget credetails with the URL of your feed that you got from the VSTS interface.

AddNugetServerFeedCredentialsTeamCity

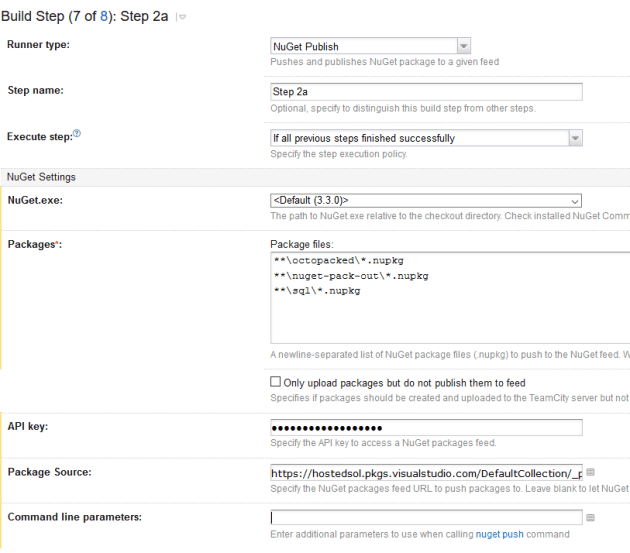

Then jump over to your Build steps and edit/add your nuget steps. Below is an example of my publish step.

NugetPublishStepTeamCity

The API key I’ve set to “VSTS” as per the instructions in the web interface of VSTS.

And we are publishing.

TeamCityBuildOutputNugetPublishVSTS

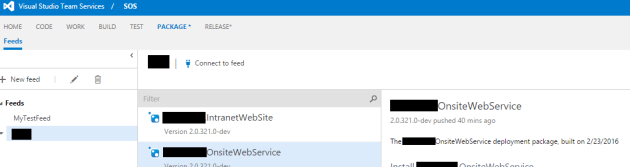

You will see the built packages in the VSTS interface when you are done.

NugetPacakgeVSTSWeb

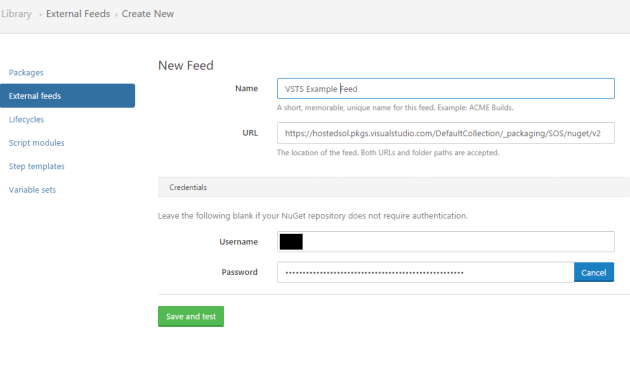

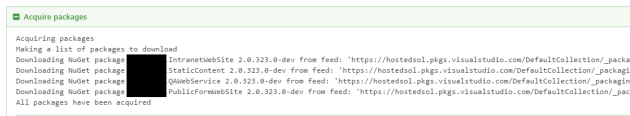

Now if you have an Octopus server like us you will need to add the credentials into it as well into the nuget feeds section.

OctopusAddExternalNugetFeedVSTS

OctopusNugetPackageVSTSFeed

And its that easy.

One of our concerns about the Klondike server we setup was capacity. Because we have more than 12 developers and run CI with auto deployment to development environment, we are generating a large number of packages daily as developers check-in/commit work, so over a period of months and years the server has become quite bloated, though to give it credit i am surprised at how long it took to get bloated.

Some queries are taking upwards of 15-20 seconds at times and we have an issue (which I have not confirmed is related) where packages are randomly “not there” after the build log say they have been successfully published.

I am hoping that the VSTS platform will do us for longer, and it has the added advantage of the granular permissions which we will be taking advantage of as we grow.











AutoRest, Swagger-codegen and Swagger

One of the best things about swagger is being able to generate a client. For me swagger is for REST what WSDL was for SOAP, one of my big dislikes about REST from the start was it was hard to build clients because the standard was so lose, and most services if you got one letter’s casing wrong in a large object it would give you a generic 400 response with no clue as to what the actual problem might be.

Enter Swagger-codegen, Java based command line app for generating proxy clients based on the swagger standard. Awesomesuace! However I’m a .NET developer and I try to avoid adding new dependencies into my development environment (Like J2SE), that’s ok though, they have a REST API you can use to generate the clients as well.

In working on this though I found that MS is also working on their own version of codegen, called AutoRest. AutoRest only support 3 output formats at the moment though, Ruby, Node.js (TypeScript) and C#, But looking at the output from both and comparing them, I am much happier with the AutoRest outputted code, its a lot cleaner.

So in our case we have 3 client requirements C#, Client Side javascript, and Client Side Typescript.

Now either way you go with this, one requirement is you need to be able to “run” your WebAPI service on a web server to generate the json swagger file that will be used in the client code generation. So you could add it into a CI pipeline with your Web API but you would need to do build steps like

  1. Build WebAPI project
  2. Deploy Web API project to Dev server
  3. Download json file from Dev Server
  4. Build client

Or you could make a separate build that you run, I’ve tried both ways and it works fine.

So we decided to use AutoRest for the C# client. This was pretty straight forward, the autorest exe if available in a nuget package. So for our WebAPI project we simply added this, which made it available and build time. Then it was simply a matter of adding a PowerShell step into TeamCity for the client library creation. AutoRest will output a bunch of C# cs file that you will need to compile, which is simply a mater of using the csc.exe, after this I copy over a nupsec file that i have pre-baked for the client library.

PowerShellAutoRestStepTeamCity


.\Packages\autorest.0.13.0\tools\AutoRest.exe -OutputDirectory GeneratedCSharp -Namespace MyWebAPI -Input http://MyWebAPI.net/swagger/docs/v1 -AddCredentials
& "C:\Program Files (x86)\MSBuild\14.0\bin\csc.exe" /out:GeneratedCSharp\MyWebAPI.Client.dll /reference:Packages\Newtonsoft.Json.6.0.4\lib\net45\Newtonsoft.Json.dll /reference:Packages\Microsoft.Rest.ClientRuntime.1.8.2\lib\net45\Microsoft.Rest.ClientRuntime.dll /recurse:GeneratedCSharp\*.cs /reference:System.Net.Http.dll /target:library
xcopy MyWebAPI\ClientNuspecs\CSharp\MyWebAPI.Client.nuspec GeneratedCSharp

You will note form the above command lines for csc that I have had to add in some references to get it to compile, these need to go into your nuspec file as well, so people installing your client package will have the correct dependencies. Snip from my nuspec file below:


<frameworkAssemblies>
<frameworkAssembly assemblyName="System.Net.Http" targetFramework="net45" />
</frameworkAssemblies>
<dependencies>
<dependency id="Microsoft.Rest.ClientRuntime" version="1.8.2" />
<dependency id="Newtonsoft.Json" version="6.0.8" />
</dependencies>

After this just add a Nuget Publish step and you can start pushing your library to nuget.org, or in out case just our private internal server.

For authentication we use Basic Auth over SSL, so adding the “-AddCredentials” command line parameter is needed to generate the extra methods and properties for us, you may or may not need this.

Below is an example console app where I have installed the nuget package that autorest created, this uses basic auth which you my not need.

namespace ConsoleApplication1
{
class Program
{
static void Main(string[] args)
{
var svc = new MyClient();
svc.BaseUri = new Uri("https://MyWebAPILive.com");
svc.Credentials= new BasicAuthenticationCredentials{UserName = "MyUser",Password = "MyPassword!"};
Console.WriteLine(svc.HelloWorld());
Console.ReadLine();
}
}
}

Next we have swagger codegen for our Client libraries. As I said before I don’t want to add J2SE into our build environment to avoid complexity, so we are using the API. I’ve built a gulp job to do this.

Why gulp? the javascript client output from codegen is pretty rubbish, so instead of using this I’m getting the typescript library and compile it, then minify, i find this easier to do in gulp.

The Swagger UI for the Swagger Codegen api is here. When you call the POST /gen/clients method you pass in your json file, after this it returns a URL back that you can use to then download a zip file with the client package. Below is my gulpfile

var gulp = require('gulp');
var fs = require('fs');
var request = require('request');
var concat = require('gulp-concat');
var unzip = require('gulp-unzip');
var ts = require('gulp-typescript');
var tsd = require('gulp-tsd');
var tempFolder = 'temp';

gulp.task('default', ['ProcessJSONFile'], function () {
// doco https://generator.swagger.io/#/
});

gulp.task('ProcessJSONFile', function (callback) {
return request('http://MyWebAPI.net/swagger/docs/v1',
function (error, response, body) {
if (error != null) {
console.log(error);
return;
}
ProcessJSONFileSwagOnline(body);
});
});

function ProcessJSONFileSwagOnline(bodyData) {
bodyData = "{\"spec\":" + bodyData + "}"; // Swagger code Gen web API requires the output be wrapped in another object
return request({
method: 'POST',
uri: 'http://generator.swagger.io/api/gen/clients/typescript-angular',
body: bodyData,
headers: {
"content-type": "application/json"
}
},
function (error, response, body) {
if (error) {
console.log(error);
return console.error('upload failed:', error);
}
var responseData = JSON.parse(body);
var Url = responseData.link;
console.log(Url);
downloadPackage(Url);
});
};

function downloadPackage(Url) {
return request(Url,
function(error, response, body) {
console.log(error);
}).pipe(fs.createWriteStream('client.zip'), setTimeout(exctractPackage,2000));
};

function exctractPackage() {
gulp.src("client.zip")
.pipe(unzip())
.pipe(gulp.dest(tempFolder));
setTimeout(moveFiles,2000);
};

function moveFiles() {
return gulp.src(tempFolder + '/typescript-angular-client/API/Client/*.ts')
.pipe(gulp.dest('generatedTS/'));
};

Now I am no expert at Node.js I’ll be the first to admit, so I’ve added a few work arounds using setTimeout in my script as I could get the async functions to work correctly, if anyone wants to correct me on how these should be done properly please do 🙂

At the end of this you will end up with the type script files in a folder that you can then process into a package. We are still working on a push to GitHub for this so that we can compile a bower package for us, I will make another blog post about this.

In the typescript output there will always be a api.d.ts file that you can reference into your TypeScript project to expose the client. I’ll do another post about how we setup or Dev Environment for compile the TypeScript from bower packages.

for our Javascript library we just need to add one more step.


function compileTypeScriptClientLib() {
var sourceFiles = [tempFolder + '/**/*.ts'];

gulp.src(sourceFiles)
.pipe(ts({
out: 'clientProxy.js'
}))
.pipe(gulp.dest('outputtedJS/'));
};

This will compile us our JS script library, we can then also minify it in gulp as well, before packaging, again bower is the technology for distributing client packages, so after this we push to GitHub, but i’ll do another blog post about that.

The output you get from TypeScript in CodeGen is angularJS, which is fine as “most” of our apps use angular already, however a couple of our legacy ones don’t, so the client proxy object that is created needs a bit of work to inject it’s dependencies.

Below is an example of a module in javascript that I use to wrap the AngularJS service and return it as a javascipt object with the Angular Dependencies injected:


var apiClient = (function (global) {
var ClientProxyMod= angular.module("ClientProxyMod", []);
ClientProxyMod.value("basePath", "http://MyWebAPILive.com/"); // normally I'd have a settings.js file where I would store this
ClientProxyMod.service("MyWebAPIController1", ['$http', '$httpParamSerializer', 'basePath', API.Client.MyWebAPIController1]);
var prx = angular.injector(['ng', 'ClientProxyMod']).get('MyWebAPIController1');
return {
proxy: prx
}
}());

You would need to do the above once for each controller you have in your WebAPI project, the codegen outputs one service for each controller.

One of the dependencies of the Service that is created by CodeGen is the “basePath” this is the URL to the live service, so i pass this in as a value, you will need to add this value to your Angular JS module when using in an Angular JS app as well.

Using basic auth in AngularJS is pretty straight forward because you can set it on the $http object which is exposed as a property on the service.


apiClient.proxy.$http.defaults.headers.common['Authorization'] = "Basic " + btoa(username + ":" + password);

Then you can simply call your methods from this apiClient.proxy object.





Private Nuget Servers – Klondike

UPDATE: A better solution I think is to use VSTS’s new package Management feature if you are using VSTS already.

Nuget is a great way to share packages around, but a lot of the LOB apps I work on we need a private solution that isn’t open to the public. I’ve setup Klondike (https://github.com/themotleyfool/Klondike) a couple of times now and find it to be light weight and dumb enough not to give any problems.

I even used it for my octopack nuget files (instead of the built in nuget server in octopus) as I find it handy just to have all your nuget in the one place.

Installation is easy, just extract it to a folder and point an IIS webroot at it. Supports self-hosted in OWIN as well if that is more your flavor.

To get everything setup i generally set this value in the web.config, it treats all request from the local server as admin. So using a web browser on the local server I get everything setup.


&lt;add key=&quot;NuGet.Lucene.Web:handleLocalRequestsAsAdmin&quot; value=&quot;true&quot; /&gt;

I’ve dropped this on servers on a domain before and used windows auth as well for authentication at an IIS level, which works fine. You could also use Basic Auth and create user accounts on the local server to manage access which I’ve done as well without any complaints.

In general terms, most projects in private sources that I work on, if you have access to the source control you should have permission to read from the nuget server, so I leave the credentials for the nuget server in my nuget.config at the root of each project in source.

Example configuration below from one of my projects:


&lt;?xml version=&quot;1.0&quot; encoding=&quot;utf-8&quot;?&gt;
&lt;configuration&gt;
&lt;activePackageSource&gt;
&lt;add key=&quot;All&quot; value=&quot;(Aggregate source)&quot; /&gt;
&lt;/activePackageSource&gt;
&lt;packageRestore&gt;
&lt;add key=&quot;enabled&quot; value=&quot;true&quot; /&gt;
&lt;/packageRestore&gt;
&lt;solution&gt;
&lt;add key=&quot;disableSourceControlIntegration&quot; value=&quot;true&quot; /&gt;
&lt;/solution&gt;
&lt;packageSources&gt;
&lt;add key=&quot;MyNugetServerInAzure&quot; value=&quot;https://MyOctopusServer.cloudapp.net:88/&quot; /&gt;
&lt;add key=&quot;nuget.org&quot; value=&quot;https://nuget.org/api/v2/&quot; /&gt;
&lt;/packageSources&gt;
&lt;packageSourceCredentials&gt;
&lt;MyNugetServerInAzure&gt;
&lt;add key=&quot;Username&quot; value=&quot;MyUserAccount&quot; /&gt;
&lt;add key=&quot;ClearTextPassword&quot; value=&quot;XXXXX /&gt;
&lt;/MyNugetServerInAzure&gt;
&lt;/packageSourceCredentials&gt;
&lt;/configuration&gt;

And then create the User Account in the Computer Manager on the server and setup IIS Authenticaiton on the Klondike website like so:

IISAUthSettingsKlondike

And you are away. I have had odd issues using the above with the role mappings, so i generally leave these settings alone

&lt;roleMappings&gt;
&lt;add key=&quot;PackageManager&quot; value=&quot;&quot; /&gt;
&lt;add key=&quot;AccountAdministrator&quot; value=&quot;&quot; /&gt;
&lt;/roleMappings&gt;

The only thing to point out in the config I change generally for Klondike is is


&lt;add key=&quot;NuGet.Lucene.Web:localAdministratorApiKey&quot; value=&quot;XXX&quot; /&gt;

And drop in an API key to use when updating packages, I don’t always give this out to all the developers working on it, but instead save the API key in the build server to force check-in to update packages via the build system.

One last issue i have with Klondike is this error “The process cannot access the file ‘C:\inetpub\wwwroot\App_Data\Lucene\write.lock’ because it is being used by another process.”

KlondikeError

If you recycle the worker process this happens, touch the web config file and it will fix it up.
